Precision Wall-Mounted Gas Spring Medical Mount

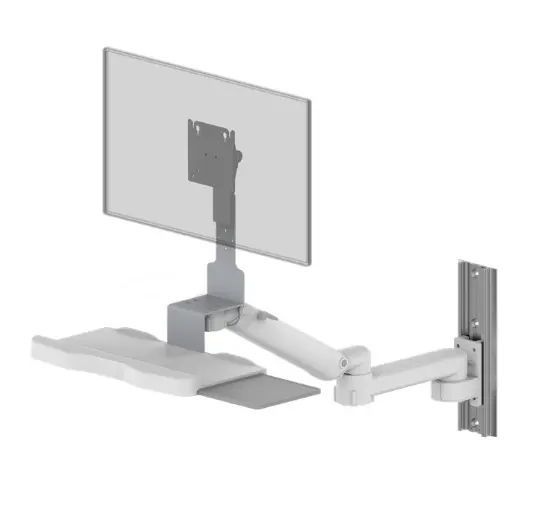

The Gas Spring Support Arm Wall Workstation is a wall-mounted, height-adjustable support arm designed for medical and clinical environments, securely holding monitors and similar equipment. It uses an internal gas-spring mechanism to enable smooth vertical adjustment.

Key Features

• Height Adjustment: 450 mm range using an internal gas spring; height locks in place when released.

• Articulation:

  • Horizontal swivel: ±90°.

  • Tilt options: 0° to −25° or 0° to −120°.

• Load Capacity (Gas Spring Options):

  • 1000 N ~ 2 – 5 kg

  • 1500 N ~ 5 – 7.5 kg

  • 2000 N ~ 7 – 11 kg

• Mounting: Standard wall channel + socket channel for device attachment.

• Concealed cable management: Yes.

• Material & Finish: Aluminium alloy construction with medical-white finish.

• Typical Applications: Supports anaesthesia machines, patient monitors, screens, and similar clinical equipment.

 Specifications

• Arm length：768mm
• Height adjustment: 450mm
• Horizontal Rotate：+ – 90°
• Tilt： 0~ 200°
• Screen Size：24inch
• Screen Max weight：10kg
• Keyboard Max weight：2kg
• Keyboard Max Size：158*442mm
